LED
GaN

Full Spectrum LED Products
Cover All Visible Light and Invisible Light

GaN

    Video Display

    General Lighting

    TV Backlight

    Mobile Phone Backlight

    Digital Signage

    Flip Chip

    Vertical

    Ultraviolet

    Mini

    Automotive

  • Indoor Display

  • Outdoor Display

Product Series and Product Types Applicable Package Application Specification Advantages
06A 2121/1515/1212... P2-P4 0.5V/8, 10, 12nm binning High Brightness, Long Service Life
08F 1010/2121... P1.2-P4 0.3V/2nm binning
08H 1010/2121... P0.9-P4 0.3V/2nm binning
Product Series and Product Types Applicable Package Application Specification Advantages
08DG 1921/2525/2727… P4-P10 0.5V/10nm binning High Brightness, Long Service Life
10A 2727/2525/3535… P4-P10

0.3V/2.5nm binning
13C 2727/3535 P4-P16 0.3V/2.5nm binning
14D 2727/3535 P4-P16 0.3V/2.5nm binning
16A 346/3535… P4-P16 0.3V/2.5nm binning

  • 0.2W

  • 0.5W

  • 1W

  • High Voltage

  • Filament

  • Horticulture Lighting

  • Full-color Lighting

  • Full Spectrum Lighting

Product Series and Product Types Applicable Package Application Specification Advantages
17 2835/3030… General Lighting 22-24lm@60mA

Test, High Brightness, Long Service Life
18 2835/3030… General Lighting 24-26lm@60mA
27 2835/3030… General Lighting 26-28lm@60mA
30
 2835/3030… General Lighting

28-32lm@60mA
Product Series and Product Types Applicable Package Application Specification Advantages
30 2835/3030… General Lighting 60-65lm@150mA

100% Test, High Brightness, Long Service Life
32 2835/3030… General Lighting 65-70lm@150mA
34 2835/3030… General Lighting 210lm/W@65mA-2D
35 2835/3030… General Lighting 220lm/W@65mA-2D
40 2835/3030… General Lighting 222lm/W@65mA-2D
42 2835/3030… General Lighting 223lm/W@65mA-2D
45 2835/3030… General Lighting 223lm/W@65mA-2D
46 2835/3030… General Lighting 225lm/W@65mA-2D
Product Series and Product Types Applicable Package Application Specification Advantages
45 3535… General Lighting ~170lm,350mA

100% Test, Low Voltage, High Brightness, Long Service Life
Product Series and Product Types Applicable Package Application Specification Advantages
18(9V) 2835/3030… General Lighting ~25lm@20mA

100% Test, Low Voltage, High Brightness, Long Service Life
26(9V) 2835/3030… General Lighting ~27lm@20mA
34(9V) 2835/3030… General Lighting ~150lm@60mA 2D
39(9V) 2835/3030… General Lighting ~153lm@60mA 2D
43(9V) 2835/3030… General Lighting ~170lm/W@100mA 2D
13(18V) 2835/3030… General Lighting ~22lm@ 10mA
16(18V) 2835/3030… General Lighting ~60lm@ 30mA
17(18V) 2835/3030… General Lighting ~63lm@ 30mA
23(18V) 2835/3030… General Lighting ~67lm@ 30mA
24(18V) 2835/3030… General Lighting ~72lm@ 30mA
30(18V) 2835/3030… General Lighting ~75lm@ 30mA
33(18V) 2835/3030… General Lighting ~77Im@ 30mA
Product Series and Product Types Applicable Package Application Specification Advantages
10 3808/4015… Filament ~130lm/W

100% Test and Binning, Long Service Life, IP Protection
14 3808/4015… Filament ~150lm/W
17 3808/4015… Filament ~155lm/W
18 3808/4015… Filament ~160lm/W
22 3808/4015… Filament ~165lm/W
28 3808/4015… Filament ~183lm/W
30 3808/4015… Filament ~185lm/W
15(6V) 3808/4015… Filament ~127lm/W
41(6V) 3808/4015… Filament ~138lm/W
16(FC) FPC Board Flexible Filament ~115lm/W
20(FC) FPC Board Flexible Filament ~120lm/W
22(FC) FPC Board Flexible Filament ~130lm/W
23(FC) FPC Board Flexible Filament ~135lm/W
Product Series and Product Types Applicable Package Application Specification Advantages
34 2835/3030… Horticulture Lighting

PPE:2.9 umol/J -2D

 100% Test, Low Voltage, High Brightness, Long Service Life
35 2835/3030… Horticulture Lighting

PPE:3.0 umol/J -2D
42 2835/3030… Horticulture Lighting

PPE:3.05-3.1 umol/J -2D
40(FC) PCT3030… Horticulture Lighting

PPE:3.15 umol/J
55(VTF) 3535… Horticulture Lighting

PPE:2.5 umol/J
Product Series and Product Types Applicable Package Application Specification Advantages
19B/G 3030/5050… Landscape Lighting, Smart Home 470/525nm 100% Test, Low Voltage, High Brightness, Long Service Life
20B/G 3030/5050… Landscape Lighting, Smart Home 470/525nm
30B/G 3030/5050… Landscape Lighting, Smart Home 455/525nm
35B/G 3030/5050… Landscape Lighting, Smart Home 475/525nm
Product Series and Product Types Applicable Package Application Specification Advantages
30 3030/2835... Circadian Lighting… 380-420nm 100% Test, Low Voltage, High Brightness, Long Service Life
31 3030/2835… Circadian Lighting… 400-420nm
32 3030/2835… Circadian Lighting… 425-440nm, 455-475nm
35 3030/2835… Circadian Lighting… 400-420nm, 425-440nm, 460-480nm

  • TV Backlight

Product Series and Product Types Applicable Package Application Specification Advantages
30(Wide Angle) 2835/4014/2016 Backlight ~88mW@60mA 100% Test, Low Voltage, High Brightness, Long Service Life
35 3030... Backlight ~160lm@400mA 2D
36 3030… Backlight ~200lm@600mA 2D
39(FC) 3030/CSP... Backlight ~1300mW@700mA
40(12V) 3030… Backlight ~175lm@100mA 2D


  • 020

Product Series and Product Types Applicable Package Application Specification Advantages
42 0.4T/0.6T… Mobile Phone/Tablet 43-48mW

Binning, Long Service Life, 100% ESD Test
36 0.4T/0.6T… Mobile Phone/Tablet 42-45mW
26 0.4T/0.6T… Mobile Phone/Tablet 40-43mW
20 0.4T/0.6T… Mobile Phone/Tablet 39-42mW
Low VF 0.4T/0.6T… Mobile Phone/Tablet 42-48mW
High Voltage 0.4T/0.6T… Mobile Phone/Tablet 65-75mW
Low Blue Light 0.4T/0.6T… Mobile Phone/Tablet 39-45mW

  • 0.06W

Product Series and Product Types Applicable Package Application Specification Advantages
8 0603/7-Segment Display Through-hole LED lamp 7.5-8.5mW@5mA 100% Test, High Brightness, Long Service Life
10 0603/7-Segment Display Through-hole LED lamp 13-16mW@10mA
12 0603/7-Segment Display Home Appliances/Keyboard Light… 24-28mW@20mA Binning, Long Service Life, 100% ESD Test
15 0603/7-Segment Display Home Appliances/Keyboard Light… 30-36mW@20mA
31
 0603/7-Segment Display Keyboard Light… 39-45mW@20mA 100% Test, High Brightness, Long Service Life

  • FC

Product Series and Product Types Applicable Package Application Specification Advantages
20 COB… General Lighting ~78lm/W@150mA 100% Test,High Brightness, Long Service Life
22 COB… General Lighting ~110lm/W@150mA
31 COB… General Lighting ~140lm/W@150mA
32 COB/Ceramic… General Lighting [email protected]
35 COB/Ceramic… General Lighting [email protected]
40 COB/Ceramic… General Lighting ~360lm@1A
45 Ceramic… General Lighting ~390lm@1A
55 Ceramic… General Lighting ~420lm@1A
60 Ceramic… General Lighting ~440lm@1A
75 Ceramic… General Lighting ~460lm@1A

  • VTF

Product Series and Product Types Applicable Package Application Specification Advantages
15G 7016 Smart Wearable >17.5mW@20mA High Brightness, Low VF, Flexible, Customized
18B COB,3535… Mobile Lighting >420mW@350mA
24B COB,3535… Mobile Lighting >500mW@350mA
26B/G COB,3535… Stage Light, Mobile Lighting >550mW@350mA,>200mW@350mA
32B COB,3535… Stage Light, Mobile Lighting >600mW@350mA
38B/G 5050,3535… Stage Light, Spotlight >600mW@350mA,>240mW@350mA
47B/G 5050,3535… Stage Light, Spotlight >1500mW@1000mA,>550mW@1000mA
55B 5050,3535… Stage Light,Landscape Lighting >660mW@350mA
63B/G 5050… Stage Light,Spotlight >1650mW@1000mA,>720mW@1000mA
72B 5050… Stage Light,Landscape Lighting >1700mW@1000mA
40W COB,3535… Stage Light,Spotlight >100lm@350mA
80W COB,3535... General Lighting >160lm@350mA

  • UV

Product Series and Product Types Applicable Package Application Specification Advantages
20 3535 Sterilization and Disinfection 270~280nm Energy is Concentrated; Sterilization Efficiency is High
21 3535 Sterilization and Disinfection 270~280nm
30 3535 Sterilization and Disinfection 270~280nm
42 6868 Sterilization and Disinfection 270~280nm
11 5050/2835 Manicure/Mosquito Trapping 360~370nm High Brightness, Low VF, Flexible, Customized
13 5050/2835 Manicure/Mosquito Trapping 360~370nm
45 6868 Curing 365/385/395/405nm
55 6868 Curing 365/385/395/405nm

  • Mini Display

  • Mini Backlight

Product Series and Product Types Applicable Package Application Specification Advantages
05L COB/1010/All-in-one… P0.6-P1.2 0.3V/2.5nm binning 100% Test, High Brightness, Long Service Life
06L COB/1010/All-in-one… P0.6-P1.2 0.3V/2.5nm binning
08L COB/1010/All-in-one… P0.6-P1.2 0.3V/2.5nm binning
Product Series and Product Types Applicable Package Application Specification Advantages
12 Laptop... General Binning: 1.5nm/0.05V/3% 100% Test, High Precision, High Contrast Ratio, Long Service Life
15 TV... Wide Angle Binning: 1.5nm/0.05V/3%
25 TV... Wide Angle Binning: 1.5nm/0.05V/3%

  • Automotive

Product Series and Product Types Applicable Package Application Specification Advantages
14 Decorative Light… 30mA 30-36mW@20mA 100% Test, Stable Performance, AEC-Q102 Certification, and Service Life is Long
18 Reading Light… 90mA 70-85mW@60mA
24 Decorative Light… 250mA 197-230mW@120mA
34 Daytime Running Light… 240mA 190-210mW@120mA
43 Daytime Running Light… 500mA 530-620mW@350mA
24(FC) Daytime Running Light… 500mA 230-260mW@150mA
47(VTF) Automotive Headlight... 3.2A 1500-1800mW@1A
  • c2img1.jpg

    Automotive LED

  • c2img2.jpg

    Mini LED

  • c2img3.jpg

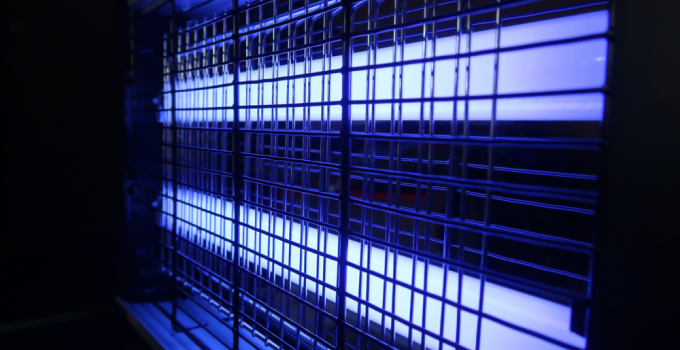

    Ultraviolet

  • c2img4.jpg

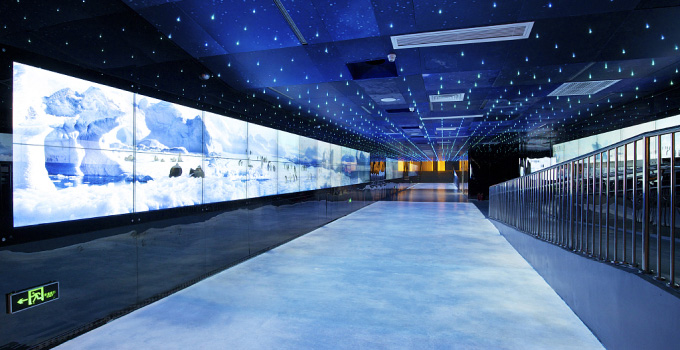

    Display Screen

  • zhaoming.jpg

    Illumination

  • c2img6.jpg

    TV Backlight

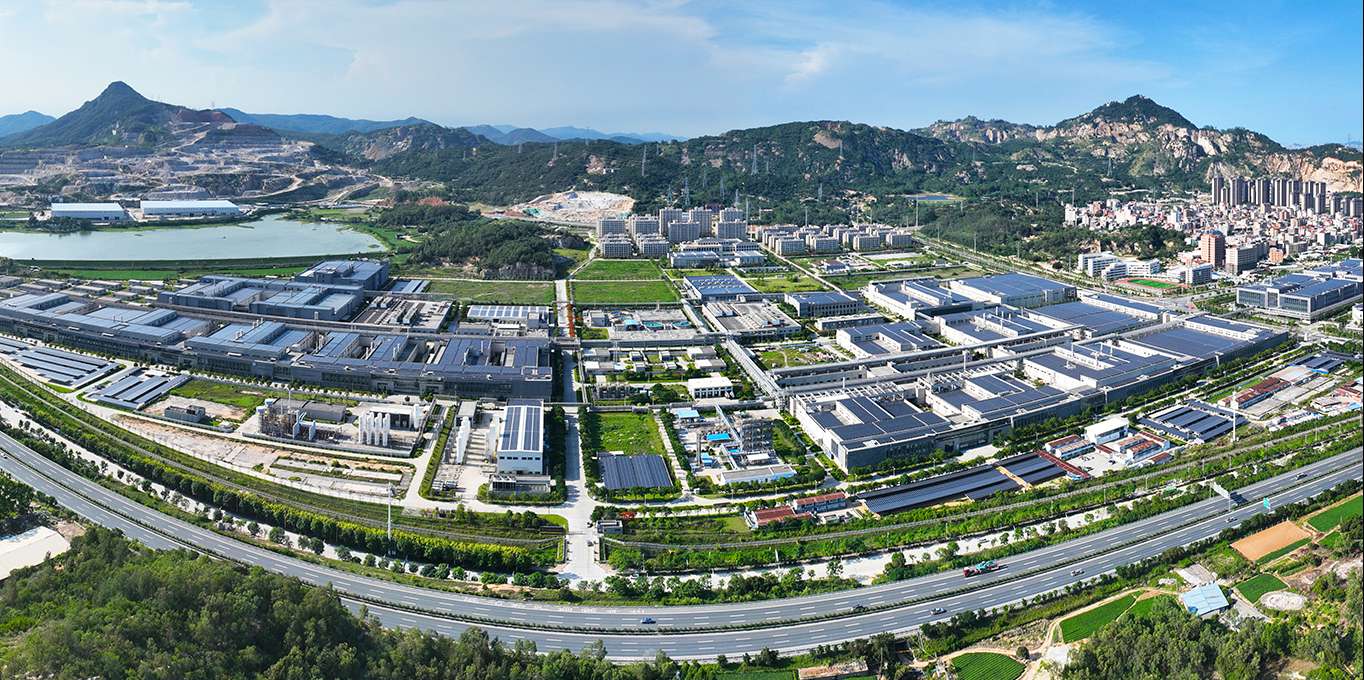

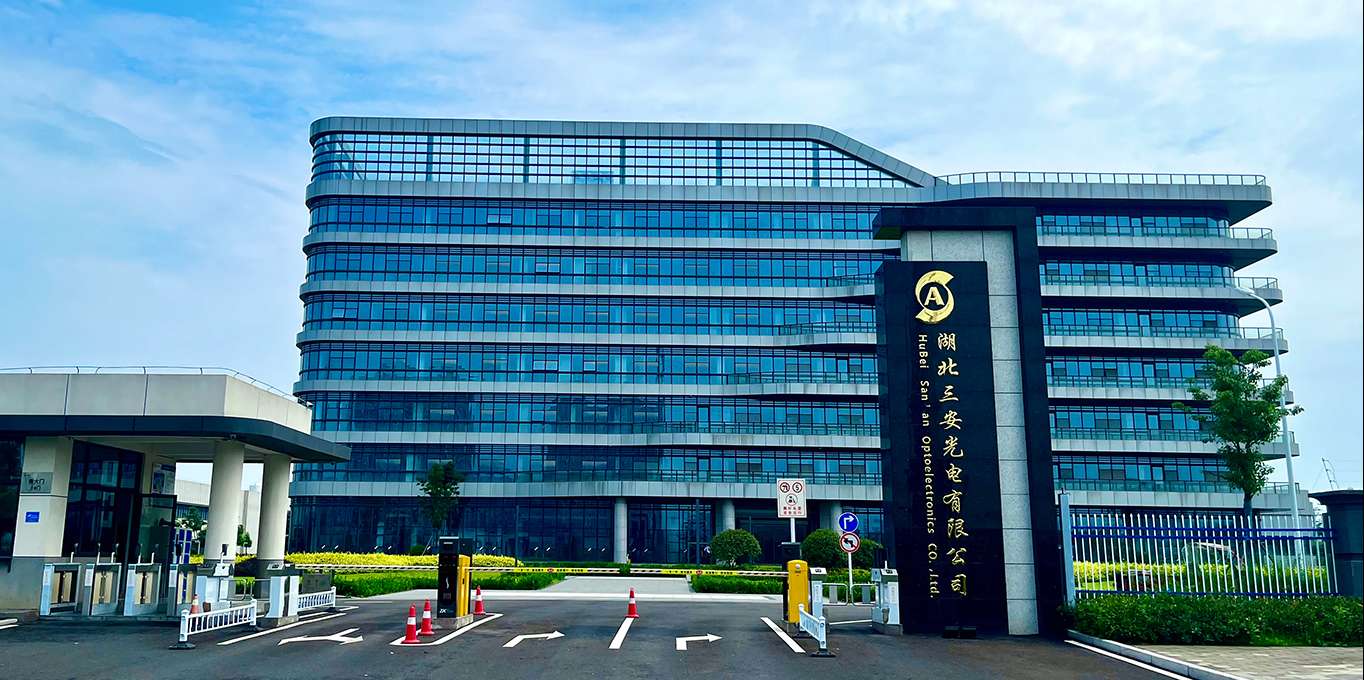

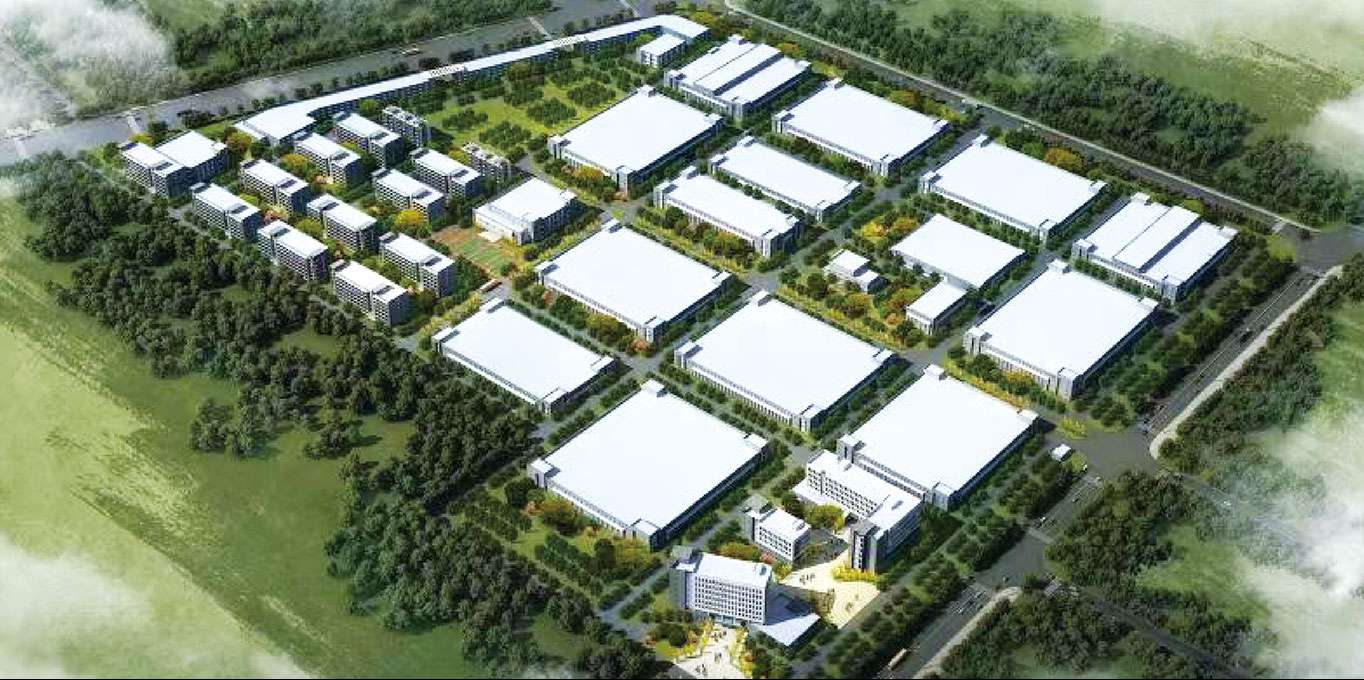

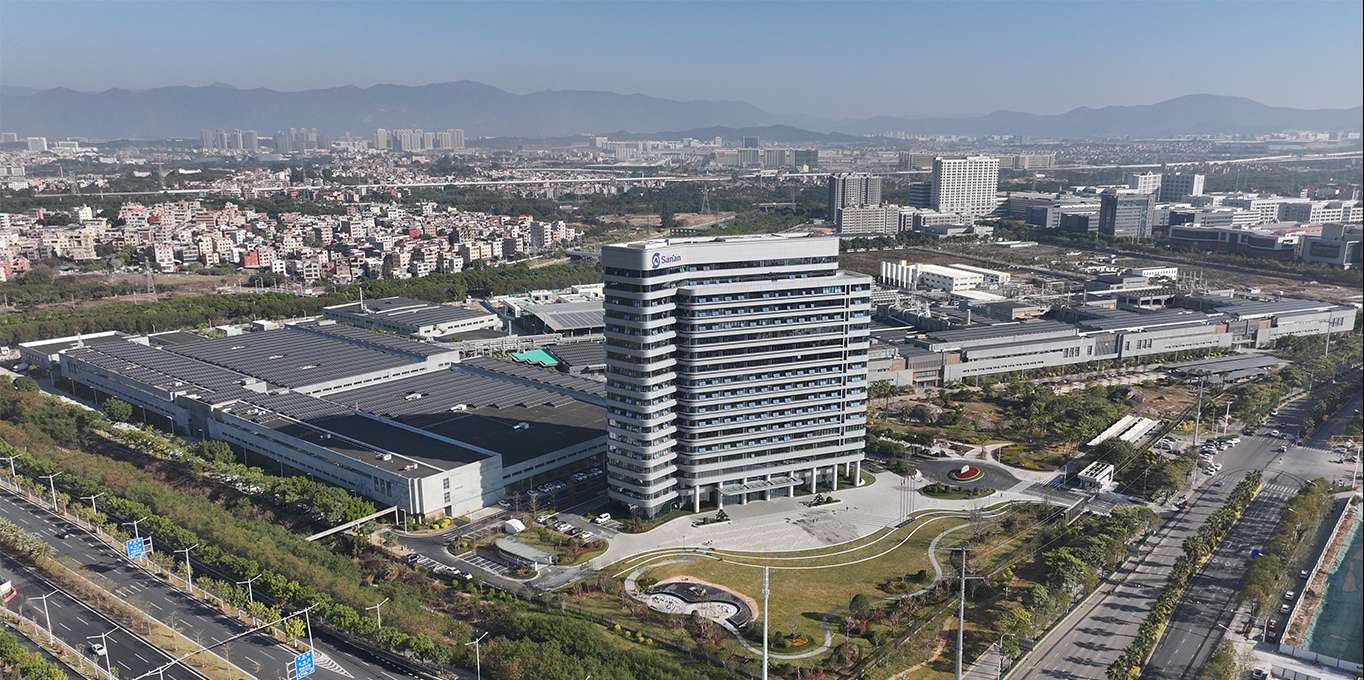

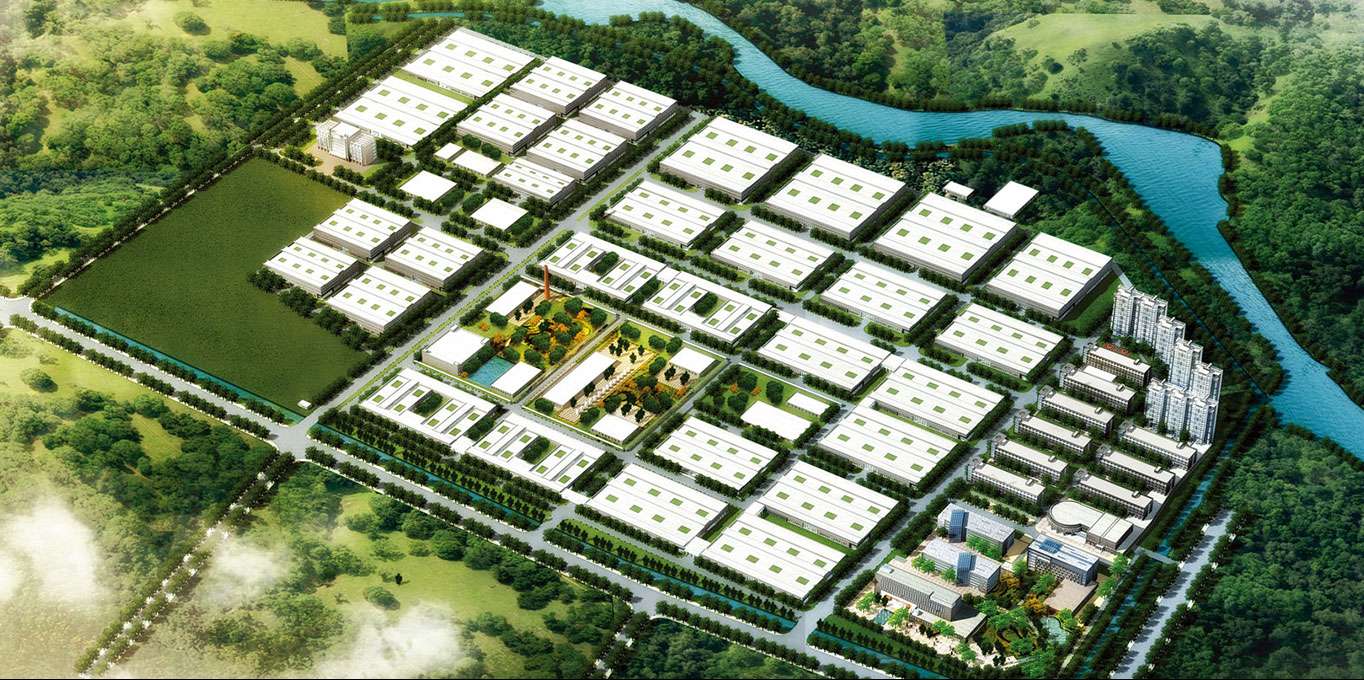

Production Base
